Description

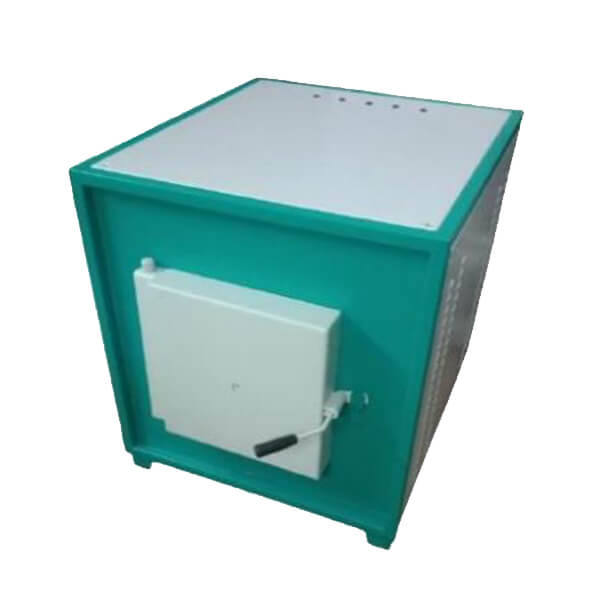

Muffle Furnace with Operating Temperature – 1400°C with gas purging and Vacuum facility
Heating System
Wiring
20 feet and other wiring accessories /work
The furnace body is fabricated out of MS powder coated and sections with welded and screw joints. The terminal connection to the furnace will be brought out at the rear side of the furnace. The furnace working heart will have a 30” height from the floor level.
The heating chamber of the furnace is fitted with ceramic board cuts on which rods are wounded. High graded insulation brickwork and ceramic fiber insulation will be provided all about the beating chamber to minimize the heat loss.Heating is accomplished by the aid of imported Silicon carbide rods and provided on sides of the chamber. The design is such that the heating elements will distribute the heat throughout the chamber uniformly and is easily accessible for easy maintenance.
Control gear: Consists of one No. Automatic temperature PID controller, with thermocouple, indicating lamps, energy regulators, Thyristor Power Regulator etc. which will be housed on sheet steel cubicle and fitted on to one side of the furnace itself.
The furnace body is fabricated out of MS powder coated and sections with welded and screw joints. The terminal connection to the furnace will be brought out at the rear side of the furnace. The furnace working heart will have a 30” height from the floor level.
The heating chamber of the furnace is fitted with ceramic board cuts on which rods are wounded. High graded insulation brickwork and ceramic fiber insulation will be provided all about the beating chamber to minimize the heat loss.Heating is accomplished by the aid of imported Silicon carbide rods and provided on sides of the chamber. The design is such that the heating elements will distribute the heat throughout the chamber uniformly and is easily accessible for easy maintenance.
Control gear: Consists of one No. Automatic temperature PID controller, with thermocouple, indicating lamps, energy regulators, Thyristor Power Regulator etc. which will be housed on sheet steel cubicle and fitted on to one side of the furnace itself.
