Description

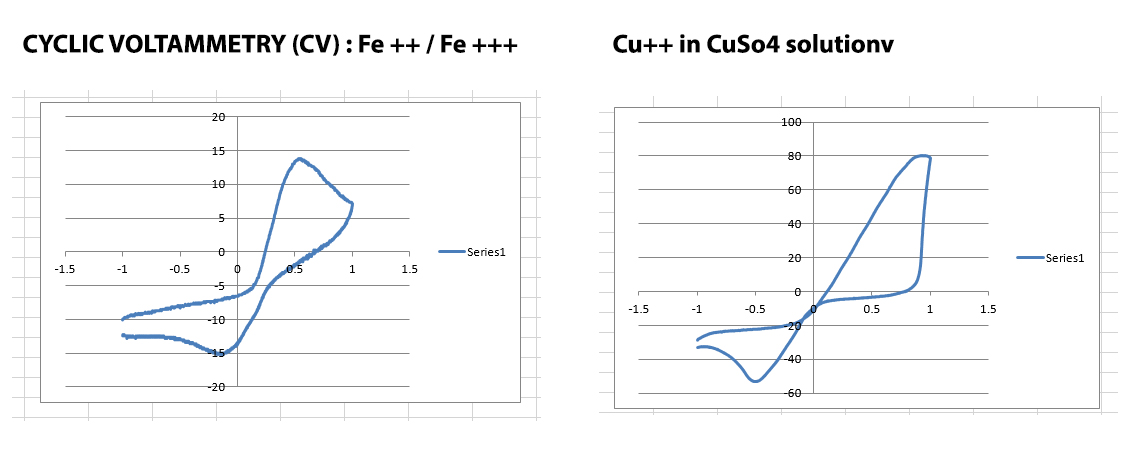

CYCLIC VOLTAMMETRY
Cyclic Voltametry :
1. Support 3 electrode system : Screen printed electrode / Accommodate
other Electrodes (WE, CE and RE) separately
2. Floating (isolated from earth) or earth ground :
3. Potential control voltage range : ± 2.3V
4. Applied potential accuracy : ± 1 mV
5. CV step potential range : 1 mV to 20 mV
6. Current control range : ± 100 mA maximum
7. Current sensitivity : 1 pA
8. CV scan rate : 1 to 100 mV / sec
9. Number of scan : 1 to 5
10. Plot storing Capacity : Max 999
11. CV current range is automatic during scan
12. 3.5 inch T.F.T. display used as a HMI
13. Manually adjustable gain
14. Data available in Microsoft Excel sheet
15. Input Power : 220 V AC

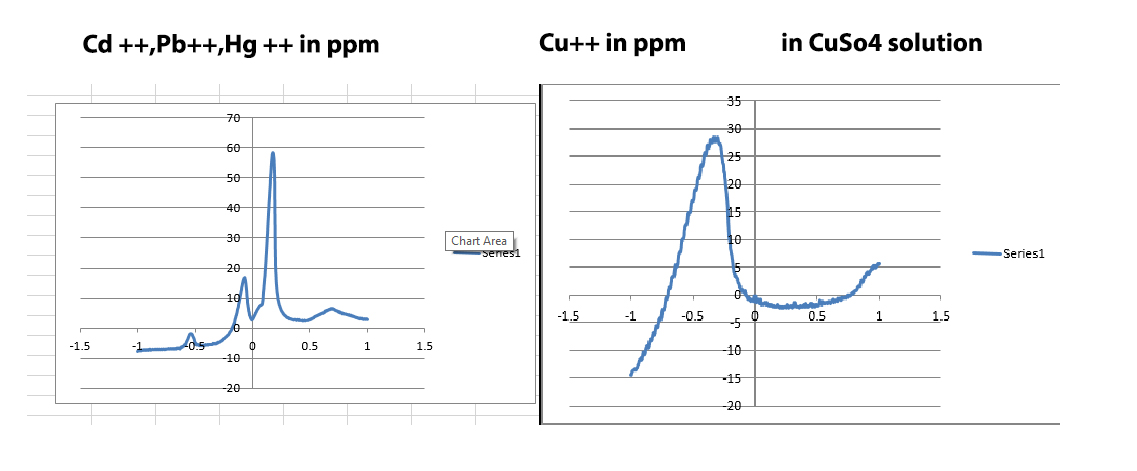

STRIPPING VOLTAMMETRY
Stripping Voltametry :
1. Stripping deposition potential range : ± 2.3 mV
2. Stripping deposition time : 1 sec to 6000 sec
3. Device gain : Adjustable
4. Scanning rate : 1mv/sec to 100mv/sec
5. Step potential :1mv to 20mv
