Description
Power Supply: 220 V/ 50 Hz Effective Cylinder Width 400 mm
- Working Power = 2400W
- Voltage=220V/110V selectable
- Effective Calendaring Width=400mm
- Roller Size Optional=100mm Dia. x 400mm W
- Hardness of roll surface=HRC 62, imported 9CR2MO steel roll material
- Calendaring Thickness=(Effective clearance) 0~3 mm adjustable
- Dial Gauge Accuracy= 0.01mm
- Rolling Speed=CVT, linear speed 0-8.5 m/min adjustable
- Roller Surface Finish Degree=Hard chromium plating never rusts
- Roll surface quenching depth= 5mm
- Max. Pressure= 5kg

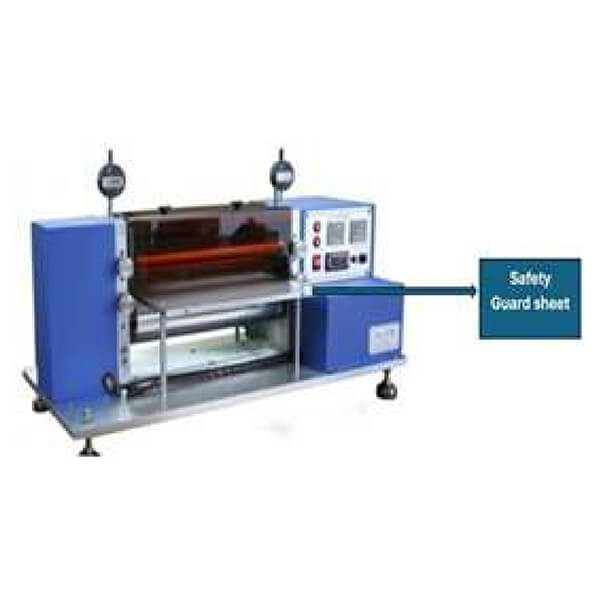

- Safety Guard sheet for Calendaring Machine: Minimum 250 mm length from both front and back.
Digital dial Gauge accuracy included
Control System:
PLC based control with HMI display for temperature and Speed control
Yudian controller module,Motor with VFD drive.
Rolling temperature: Room temperature to 150°C,Dimension:
L 825mmx W 245mmx H 355mm
Weight:~145Kg
