Description
General

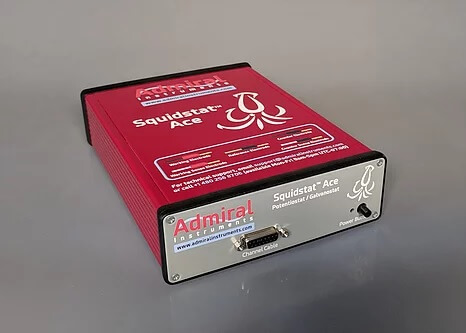

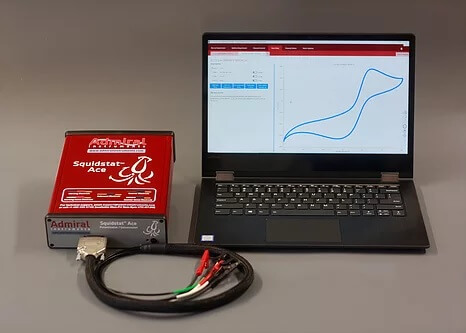

The Squidstat Ace is the very first without EIS-capable Squidstat created by Admiral Instruments. It is designed to exceed (or at least be comparable) in performance versus all other moderate-amperage, single- channel potentiostats with EIS. And priced at low cost, the Squidstat Plus is less than half the cost of similar instruments. We achieved this goal through the development of modernized, inventive, and cost-saving hardware that can reliably handle a heavy workload but is compact and lightweight.
Squidstat Ace Performance Summary
| Maximum Current | ± 1 A |
| Compliance Voltage | ± 12 V |
| Current Resolution | 0.003% of range |
| Potential Resolution | 370 µV |
| Temporal Resolution | 10 µs |
| Dimensions | 23 cm x 18 cm x 5 cm |
Squidstat Ace Highlights:
- Becomes a multichannel system by connecting more Squidstats to the same computer
- Onboard memory backs up all data collected from experiments for fail safe recovery
- Voltage/current set points, OCP mode, and sampling rates are adjustable in real time
- Wide selection of prebuilt experiments are available, and the “Drag & Drop” experiment builder can quickly and easily make custom experiments – no coding skills necessary!
General
| Operating Modes | Potentiostat, Galvanostat, ZRA, FRA |
| Cell Connections | 2, 3, 4, of 5 electrode terminals |
| Temporal Resolution | 10 µs |
| Floating vs. Earth-grounded | Selectable and changeable with switch |
| Input Impedance | >10 TOhm (typical) |
| Input Bias Current | <5 pA (typical) |
| Onboard Memory | 2 GB for automatic data backup |
| Dimensions | 9 in x 7 in x 2 in (23 cm x 18 cm x 5 cm) |
| Weight | 2 lbs (0.9 kg) |
| Computer Interface Connection | 1 USB port, PC or Mac compatible |
| Power Requirements | 110 – 240 VAC, 50 – 60 Hz |
